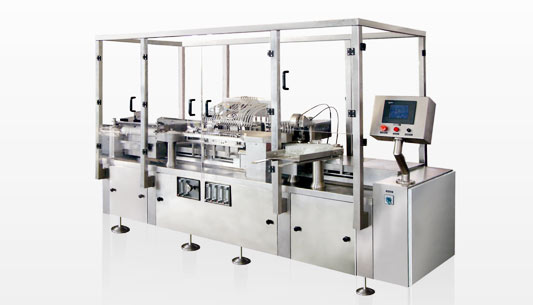

QSGB High-speed Ampoule Filling Monoblock Machine

Introduction
Specs
Samples
Video

● Main application:
This monoblock line is made up of Model QCK vertical ultrasonic washing machine, Model ASMR hot air circulation drying & sterilizing machine, Model DGFB ampoule filling and sealing machine. It can be combined withother machine and also can be used seperately. This line can finish the following procedures: transporting bottle with netbelt, pouring water, ultrasonic washing, flushing, gas filling, preheating, drying and sterilizing, cooling, nitrogen charging before filling, filling, nitrogen charging after filling, sealing. After upgrading, this line can also be used for vial injectable production. It conforms to the latest GMP requirement, and is the highest speed and completest function injectable production line.

● Main technical parameter:

Model	QSGB 8/1-20	QSGB 10/1-5	QSGB 10A/1-20	QSGB 12/1-10	QSGB 12A/1-20	QSGB 16/1-5
Suitable size	1-20ml	1-5ml	1-20ml	1-10ml	1-20ml	1-5ml
Production capacity(b/h)	20000-2400（1-2ml） 14000-18000（5ml） 9000-13000（10ml） 10000-8000(20ml)	30000（max）	30000（max）	34000(max)	35000 (max)	46000 (max)
Electric capacity(Kw)	64	64	64	64	64	97.8
Net Weight(Kg)	8200	8300	8300	8380	8380	8900
Overall dimension(L×W×H)	9035×2620×2420	9035×2620×2420	10448×2620×2420	9635×2620×2420	10770×2620×2420	11340×2785×2530

● Performance characteristics:
Reasonable structure, small floor space.
Intelligent control system, automatic production process, easy to operate, maintain, few operator ,high production efficiency
Production is implemented in sealed and laminar flow condition, which prevent cross contamination and conforms to GMP requirement.
It can produce ampoule with various sizes, easy to change specification parts, good versatility .
